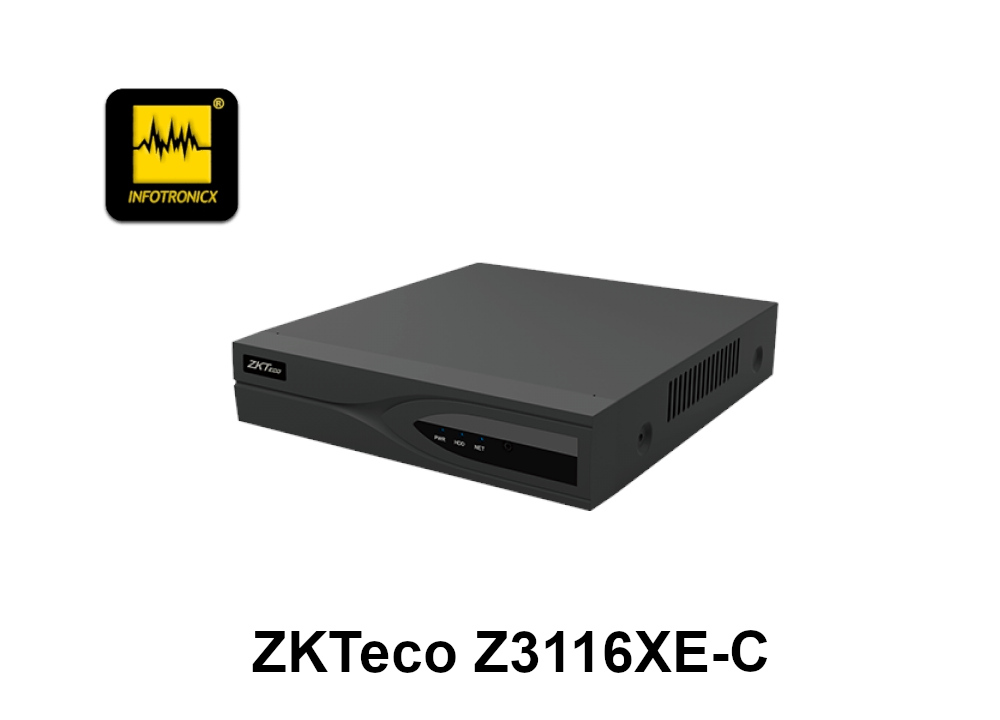

ZKTeco Z3116XE-C
₹12,520.30Price
ZKTeco Z3116XE-CL 16 Channel DVR could deliver up to 1080 resolution excellent image over advanced H.264 decoding.
It's the ideal consideration for the balance of quality, performance and budget.
ZKTeco provides with this DVR the friendly GUI intuitive shortcut operations, remote control and management, flexible storage, smart serach and playback.
FEATURES
- Live View 16 Channel
- Record 16 * 1080P@12fps
- Mobile App Gt-view
- Playback 16 Channel
SPECIFICATIONS
- Compression: H.264
- Video Output: 1*VGA, 1*HDMI 1080P
- RJ45 1*10/100Mbps, Ethernet port
- Two-way Talk: Yes
- HDD: 1SATA, up to 10TB
System
| Processor | Multi-core Embedded Processor |
| Operation System | Embedded Linux |
Display
| Interface | 1 HDMI, 1 VGA |
| OSD | Camera Title, Time, Video Loss Motion Detection, Recording |
Video Detection and Alarm
| Linkaged Events | Alarm Out, Linkage Record, Snapshot, PTZ Linkage, Tour Show Message, Buzzer, Send Email, FTP, Upload Cloud, Push Alarm |
| Motion Detection | MD Zones: 396 (22 x 18) |
| Alarm Input | N/A |
| Alarm Output | N/A |
Playback and Backup
| Playback Channel | 16 |
| Search Mode | Time/Date, MD and Exact Search, Smart Search |
| Playback Function | Play, Pause, Stop, Rewind, Fast Play, Slow Play, Next Camera, Previous Camera,Full Screen,Shuffle,Backup Selection, Digital Zoom |
| Backup Mode | USB Device/Network |
Interface and Storage
| Network Interface | 1 RJ-45 port (10/100Mbps) |
| HDD | 1 SATA, up to 10TB capacity for each HDD |
| USB | 2 x USB 2.0 |
Audio and Video
| Analog Camera Input Channel | 16 |
| Two-way Talk | 1 Channel Input, 1 Channel Output, RCA |
Network
| Network Protocol | HTTP, TCP/IP, IPV4, UDP, RTSP, DHCP, FTP, PPPOE, NTP, UPnP, P2P, DDNS, SMTP |
| Max. Online User | 20 |
| Mobile App | Antarview (iOS & Android) |
| Interoperability | Onvif Profile S,SDK |
Environmental
| Working Temperature | 0℃~+55℃ |
| Working Humidity | 10~90% |
Construction
| Dimensions |
4/8 Channel 215mm x 235mm x 45mm 16 Channel 320mm x 246mm x 48mm |
| Net Weight | 1KG |
| Gross Weight | 1.4KG |
