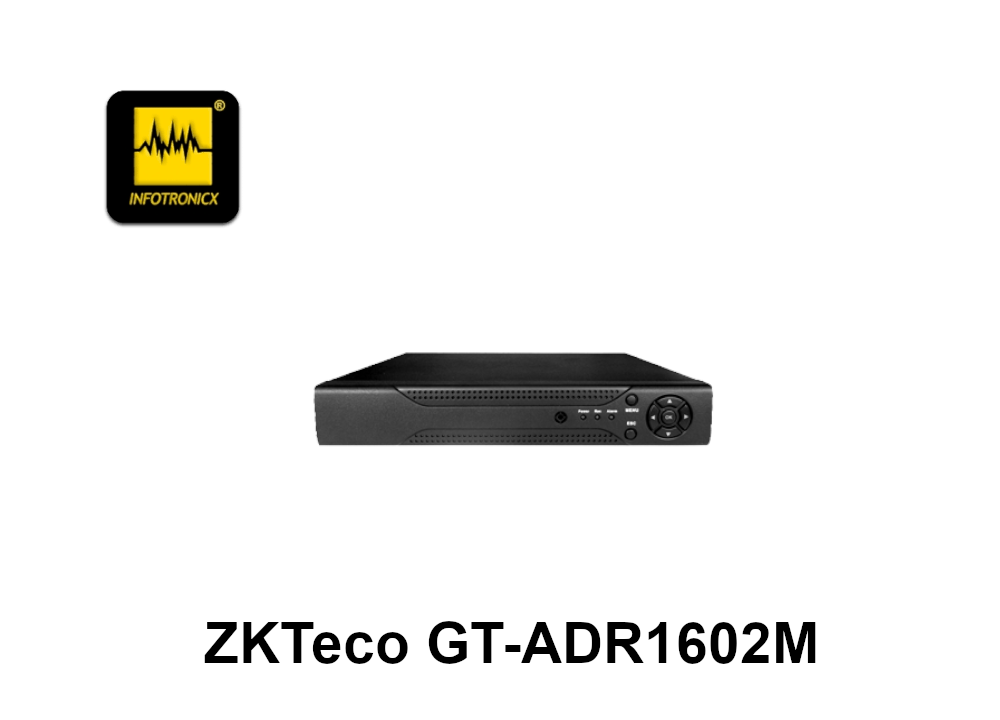

ZKTeco GT-ADR1602M
₹9,695.40Price
16-ch video input Supports hybrid video input – AHD, Analog and IP camera With VGA, HDMI HD output H.264 compression Supports phone monitoring(iPhone, Android) With 2 SATA, max to 6 TB Supports web browser access Support Multi-language Support IE web server, client
FEATURES
- Live View 16 Channel
- Record 16 * 1080P@12fps
- Mobile App Gt-View
- Playback 16 Channel
SPECIFICATIONS
• 16-ch video, 2-ch Audio input
• Supports Analog, AHD and IP camera
• With VGA, HDMI, HD output
• With 2 SATA, max up to 3 TB/SATA
| Product Model | GT-ADR1602M |
Video/Audio Input
| Video Compression | H.264 (High Prole) |
| Video Input | Analog: 16* AHD-M; 8* AHD-M; Mixed:4* AHD-M (analog )+4*720P( network ); Network: 1*1080P+8*720P； 4*1080P；20*960H; |
| Input Mode | Each group (CH1&CH2, CH3&CH4, etc) support the same signal input |
| Audio Input | 2-ch RCA |
Video/Audio Output
| Video Output | 1-ch VGA, 1-ch HDMI |
| Audio Output | 1-ch RCA |
| Backup | Network backup, USB mobile hard disk |
| Playback | 4 channels (1-ch real time) |
Storage
| Hard Disk Interface | 1 SATA (Max 3TB) |
| Space Occupied | 720P 20G / day*channel; 960H 12~20G / day*channel; Audio: 691.2M / day*channel |
External interface
| Input | 16-ch BNC |
| Network Interface | RJ45 10M/100M adaptive ethernet interface |
| USB Interface | 2 USB 2.0 ports |
| Serial Interface | 1 RS-485 Support multi kinds of PTZ protoco |
General
| Power | 12V/2A |
| Dimension(color box) | 345mm*95mm*275mm |
| Net/Gross Weight | 1.0kg/1.8kg |
