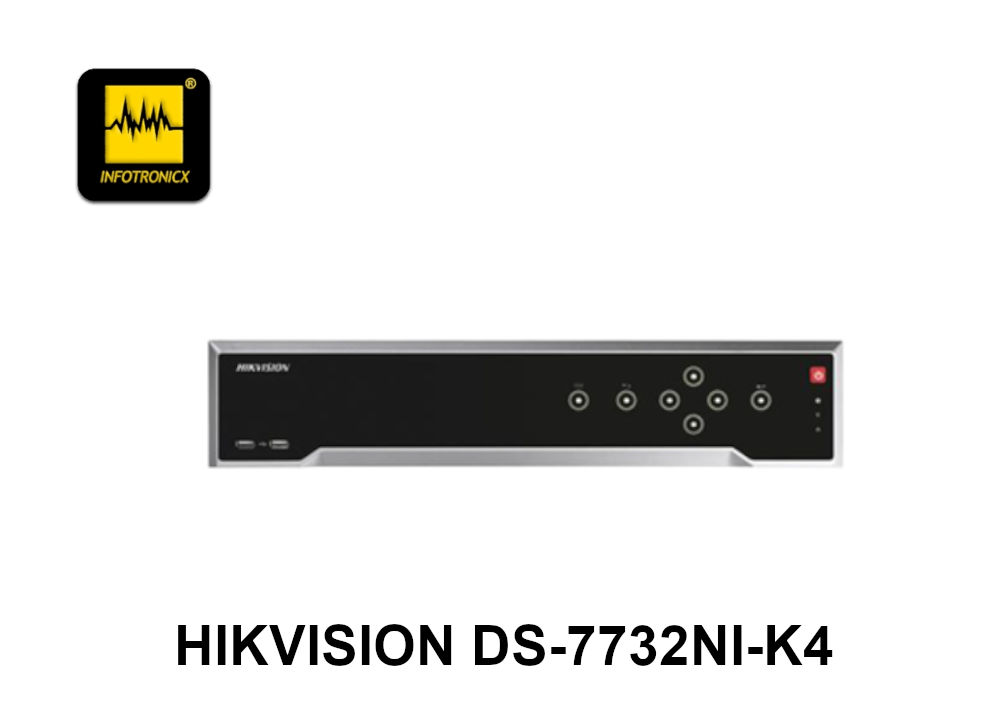

HIKVISION DS-7732NI-K4
₹30,030.00Price
32-ch 1.5U 4K NVR
- Up to 32-ch IP camera inputs
- H.265+/H.265/H.264+/H.264 video formats
- Up to 2-ch @ 8MP or 4-ch @ 4MP or 8-ch @ 1080P decoding capacity
- 1 HDMI and 1 VGA interfaces: both interfaces support independent video output
- 4 HDDs for continuous video recording
- Up to 256 Mbps incoming bandwidth
| Video And Audio |
| IP Video Input32-ch |
| Incoming Bandwidth256 Mbps |
| Outgoing Bandwidth160 Mbps |
| HDMI Output1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| VGA Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| Audio Output1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input ) |
| Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input ) |
| Video Output ModeHDMI/VGA independent output |
| CVBS OutputN/A |
| Audio InputN/A |
| Decoding |
| Decoding FormatH.265/H.265+/H.264+/H.264/MPEG4 |
| Recording Resolution12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/ 720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Synchronous Playback16-ch |
| Decoding Capability1-ch@12MP (30fps)/2-ch@8 MP (30 fps)/4-ch@4 MP (30 fps)/8-ch@1080p(30 fps) |
| Stream TypeVideo, Video & Audio |
| Audio CompressionG.711ulaw/G.711alaw/G.722/G.726 |
| Network |
| Remote Connection128-ch |
| Network ProtocolTCP/IP, DHCP, IPv4, Hik-Connect, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS |
| Network Interface2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces |
| RAID |
| RAID TypeN/A |
| Auxiliary Interface |
| SATA4 SATA interfaces |
| CapacityUp to 10TB capacity for each HDD |
| Serial Interface2 RS-485 (half-duplex), 1 RS-232 |
| USB InterfaceFront panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0 |
| Alarm In/Out16/4（16/9 is optional） |
| General |
| Power Supply100 to 240 VAC, 50 to 60Hz |
| Consumption≤ 20 W |
| Working Temperature-10 °C to 55 °C (14 °F to 131 °F) |
| Working Humidity10 to 90 % |
| Dimension (W × D × H)445 × 400 ×71 mm ( 17.5"× 15.7" × 2.8") |
| ≤ 5 kg (11 lb.) |
| Certification |
| FCCPart 15 Subpart B, ANSI C63.4-2014 |
| CEEN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017 |
