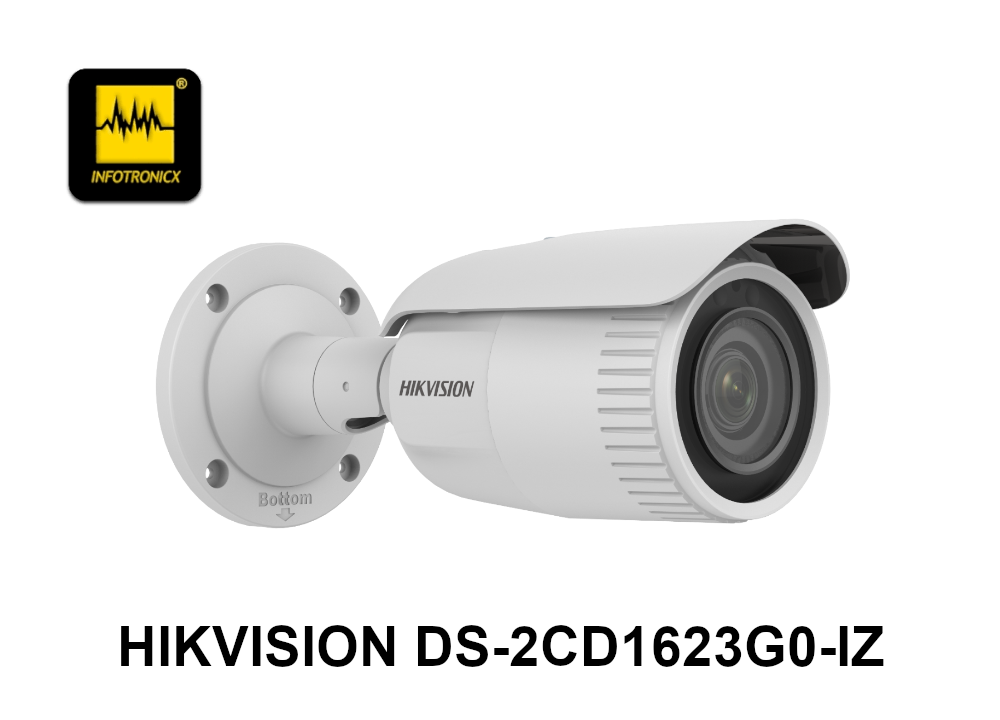

HIKVISION DS-2CD1623G0-IZ
₹9,145.50Price
2 MP Varifocal Bullet Network Camera
- High quality imaging with 2 MP resolution
- Efficient H.265+ compression technology
- Clear imaging even with strong back lighting due to DWDR technology
- Up to 256 GB SD card slot for storage
- 2.8 to 12 mm motorized varifocal lens for easy installation and monitoring
- Water and dust resistant (IP67)
- EXIR 2.0: advanced infrared technology with long IR range
| Camera |
| Image Sensor1/2.7" Progressive Scan CMOS |
| Max. Resolution1920 × 1080 |
| Min. IlluminationColor: 0.005 Lux @(F1.6, AGC ON), B/W: 0 Lux with IR |
| Shutter Speed1/3 s to 1/100,000 s |
| Wide Dynamic RangeDigital WDR |
| Day & NightIR Cut Filter |
| Angle AdjustmentPan: 0° to 360°, tilt: 0° to 90°, rotation: 0° to 360° |
| Lens |
| Lens TypeVarifocal Lens, motorized lens, 2.8 to 12 mm |
| Focal Length & FOV2.8 to 12 mm: horizontal FOV 96° to 36°, vertical FOV 51° to 20°, diagonal FOV 113° to 42° |
| Lens MountØ14 |
| Iris TypeFixed |
| ApertureF1.6 |
| Illuminator |
| IR Wavelength850 nm |
| IR Range |
| Up to 50 m |
| Video |
| Main Stream |
| 50 Hz: 25 fps (1920 × 1080, 1280 × 720), |
| 60 Hz: 30 fps (1920 × 1080, 1280 × 720) |
| Sub-Stream |
| 50 Hz: 25 fps (640 × 480, 640 × 360) |
| 60 Hz: 30 fps (640 × 480, 640 × 360) |
| Video Compression |
| Main stream: H.265+/H.265/H.264+/H.264 |
| Sub-stream: H.265/H.264/MJPEG |
| Video Bit Rate32 Kbps to 8 Mbps |
| H.264 TypeBaseline Profile/Main Profile/High Profile |
| H.265 TypeMain Profile |
| Region Of Interest (ROI)1 fixed region for main stream |
| Audio |
| Audio Compression-S: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC |
| Audio Bit Rate-S: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC) |
| Audio Sampling Rate-S: 8 kHz/16 kHz |
| Environment Noise Filtering-S: Yes |
| Network |
| ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS |
| Simultaneous Live ViewUp to 6 channels |
| APIOpen Network Video Interface, ISAPI |
| User/HostUp to 32 users. 3 levels: administrator, operator and user |
| ClientiVMS-4200, Hik-Connect |
| Web Browser |
| Plug-in required live view: IE 10+ |
| Plug-in free live view: Chrome 57.0+, Firefox 52.0+ |
| Local service: Chrome 57.0+, Firefox 52.0+ |
| Image |
| Image SettingsSaturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser |
| Day/Night SwitchAuto, Schedule, Day, Night |
| Image EnhancementBLC, 3D DNR |
| Interface |
| Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port |
| On-Board StorageBuilt-in memory card slot, support microSD card, up to 256 GB |
| Audio-S: 1 input (line in), 1 output (line out), mono sound |
| Alarm-S: 1 input,1 output, max. 12 VDC, 30 mA |
| Reset KeyYes |
| Event |
| Basic EventMotion detection, video tampering alarm, exception |
| Linkage-S: Upload to FTP, notify surveillance center, send email, upload to memory card, trigger recording, trigger capture, trigger alarm output |
| General |
| Power |
| 12 VDC ± 25%, 0.9 A, max. 11 W, Ø5.5 mm coaxial power plug |
| PoE: (802.3af, Class 3, 36 V to 57 V), 0.23 A to 0.36 A, max. 12.9 W |
| Camera DimensionØ105 mm × 244.4 mm (4.1" × 9.6") |
| Package Dimension315 mm × 137 mm × 141 mm (12.4" × 5.4" × 5.6") |
| Camera WeightApprox. 1035 g (2.3 lb.) |
| With Package WeightApprox. 1550 g (3.4 lb.) |
| Storage Conditions-30 °C to +60 °C (-22 °F to +140 °F). Humidity 95% or less (non-condensing) |
| Startup And Operating Conditions-30 °C to +60 °C (-22 °F to +140 °F), humidity 95% or less (non-condensing) |
| LanguageEnglish, Ukrainian |
| General FunctionAnti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter |
| Approval |
| EMC |
| FCC SDoC (47 CFR Part 15, Subpart B); |
| CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); |
| RCM (AS/NZS CISPR 32: 2015); |
| IC VoC (ICES-003: Issue 6, 2016); |
| KC (KN 32: 2015, KN 35: 2015) |
| Safety |
| UL (UL 60950-1); |
| CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); |
| CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); |
| BIS (IS 13252(Part 1):2010+A1:2013+A2:2015) |
| Environment |
| CE-RoHS (2011/65/EU); |
| WEEE (2012/19/EU); |
| Reach (Regulation (EC) No 1907/2006) |
| Other |
| IP67 (IEC 60529-2013) |
